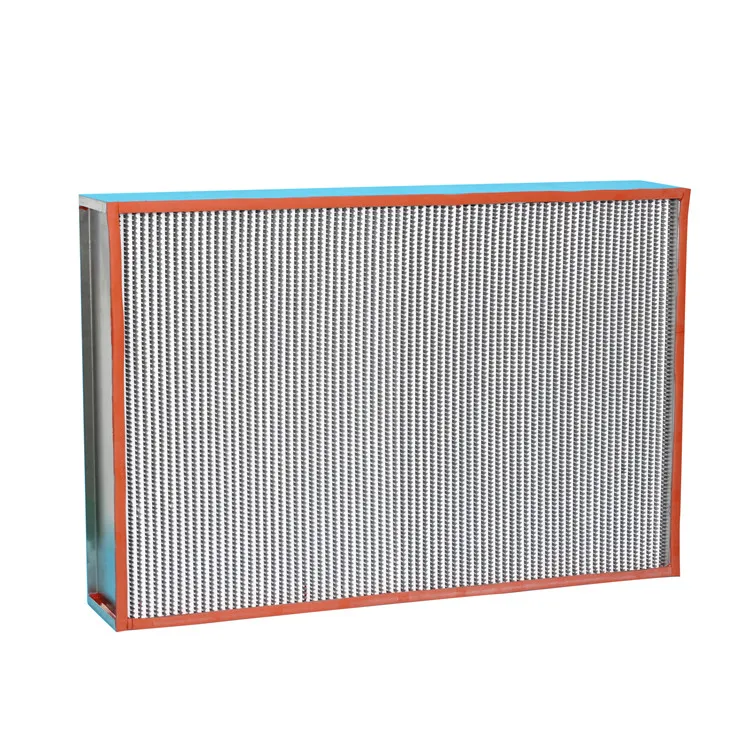

High Quality High Temperature Resistant High Efficiency Filter Air Filter

FOB Reference Price:Get Latest Price
$25.00 - $150.00 / Piece | 10 Piece/Pieces (Min. Order)
Filtration Grade:
Hepa Filter
Medium Material:
FIBERGLASS
Model Number:
1
Lead Time:
Quantity(Pieces) 1 - 5000 >5000
Est. Time(days) 15 Negotiable
Customization:
Customized packaging (Min. Order: 500 Pieces)
Graphic customization (Min. Order: 500 Pieces)
Report Suspicious Activity
Overview
Quick Details
Applicable Industries:
Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, farms, restaurant, HOME USE, Retail, Food Shop, Printing Shops, Construction works , Energy & Mining, Food & Beverage Shops, Advertising Company
Condition:
New
Efficiency:
> 99.95
Construction:
Box Filter
Porosity:
0.3μm,0.3μm
Place of Origin:
Guangdong, China, Guangdong, China (Mainland)
Brand Name:
Youjie, Youjie
Dimension(L*W*H):
Customized
Weight:
2-10KG
Certification:
ISO
Warranty:
5 years
After-sales Service Provided:
Online support
Name:
Air Filter
Filter material:
glassfiber
Frame material:
Aluminum alloy & stainless steel
Application:
Applied to some equipment like oven which the clean air is required
Type:
high-temperature resistance filter
Size:
Customsize
Usage:
UV paint line air filtration
MQQ:
10
Supply Ability
Supply Ability:
5000 Piece/Pieces per Week
Packaging & Delivery
Packaging Details
Outer packaging carton + PE carton
Port
Shenzhen
Picture Example:
package-img
Lead Time :
Quantity(Pieces) 1 - 5000 >5000
Est. Time(days) 15 To be negotiated
Video Description





High temperature resistance air filter





Recommended applications

The high temperature air filter use separators to maintain the precise spacing of the pleats to make most of the filter media. Therefore, the filter has advantages of large air volume, low resistance and uniform wind velocity, meanwhile, it can adapt to high temperature environments. It is mainly used in surface coatings industry to filter particulates such as tar, soot and dust generated in the drying room to ensure the cleanliness of the product surface.

In addition, it can be used in high temperature environments such as clean ovens or baking tunnel furnaces, and filtration in drying ovens in the system's electronic circuit board production process.



Technical parameters

Initial resistance (Pa)

Standard EN779

Filtration efficiency (DOP)

≤220

F9-U15

85.97%~ 99.99%@0.3μm

Main material

Filter media

Ultra-fine glass fiber filter paper

Frame

Special aluminum profiles or stainless steel

Separator

Aluminum foil

Sealant

High temperature resistant silicon

Sealing strip

High temperature resistant silicon sealing strip

Protection grid

stainless steel



Features:



 ♦The filter media and the frame are sealed by special red silicone sealant to prevent air leakage. All materials can withstand high temperature to ensure that the air filter can properly function in high temperature ranged from 150°C to 300°C.

 ♦This series of air filters is usually a paneled design. Aluminum alloy, stainless steel and other materials are used as the frame according to different usage temperature, special glass fiber filter paper is used as filter media. The special aluminum foil made corrugated separators maintain precise pleat spacing, allowing the filter to effectively use the media at minimum resistance.

 ♦Various efficiency class from F9 to H13 can be chosen to meet different requirements. Each high efficiency air filter undergoes strict leak detection and scanning tests before shipment.

Optional specifications

Note: The following is the common size of the air filter. Youjie can also provide custom size filters according to your requirements.

Dimensions

Rated Capacity (M3/H)



inch

mm

20*20*10

484W*484H*220D

800



24*20*12

610W*350H*295D

1500



24*24*12

610W*610H*295D

3000
